How to Use Wireshark for Wi‑Fi Troubleshooting

In today’s interconnected world, reliable Wi-Fi is no longer a luxury - it’s a necessity. For small business owners in Wyoming’s underserved areas, such as trailer parks, RV parks, and rural venues, ensuring seamless internet connectivity for customers can be challenging. When issues arise, troubleshooting effectively becomes paramount. Enter Wireshark, a powerful tool designed for network analysis. In this article, we’ll explore how leveraging Wireshark and a specialized profile can simplify Wi-Fi troubleshooting, improve performance, and bridge the digital divide for businesses and communities.

Whether you're a small business owner looking to maintain reliable internet for your customers or a network enthusiast eager to dive deeper into wireless packet analysis, this guide breaks down a key tutorial on using Wireshark for Wi-Fi troubleshooting.

What Is Wireshark and Why Does It Matter for Wi-Fi?

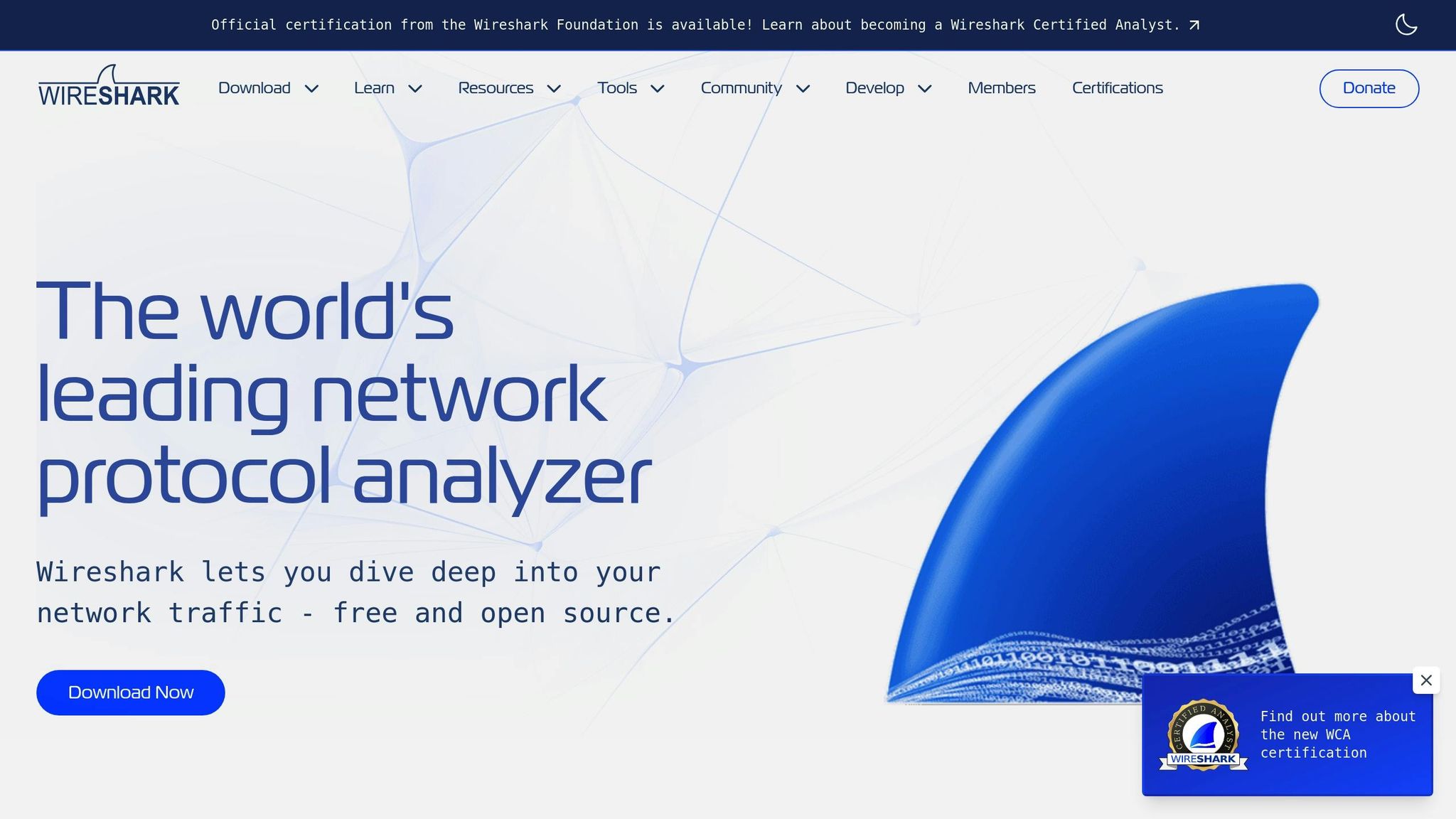

Wireshark is an open-source network protocol analyzer that allows users to inspect and analyze real-time traffic on their networks. When applied to Wi-Fi troubleshooting, it provides valuable insights into packet flows, client behavior, and potential issues such as connectivity failures or roaming delays. For Wyoming-based entrepreneurs, understanding how to use this tool can reduce reliance on costly IT support and empower you to maintain consistent Wi-Fi solutions for your customers.

The video in question introduces a customized Wireshark profile - designed specifically for wireless troubleshooting - and demonstrates how to use it effectively. The goal? Making network analysis more accessible, even for beginners.

sbb-itb-342b8b2

Setting the Stage: The Importance of a Wireshark Profile

The tutorial revolves around a custom Wireshark profile - a tailored environment that simplifies the often-complex process of wireless packet analysis. This profile includes:

1. Predefined Color Schemes: Frames are highlighted in distinct colors, making it easier to differentiate between management, control, and data frames.
2. Additional Columns: Important details such as channels, data rates, SSIDs, and station counts are conveniently displayed.
3. Display Filters: Specific filters help isolate relevant wireless traffic, such as client authentication requests or roaming events.

Why Use a Custom Profile?

Wi-Fi traffic is notoriously complex due to the layered nature of wireless communication. Without a structured profile, analyzing raw data in Wireshark can feel overwhelming and inefficient. This profile removes the guesswork, allowing you to focus on actionable insights rather than sifting through unrelated data.

Step-by-Step: Using Wireshark for Wi-Fi Troubleshooting

1. Set Up Your Environment

• Download and Import the Profile: The video provides instructions to download the custom Wireshark profile as a ZIP file. Once imported, the profile automatically populates the necessary settings.
• Leverage the Color Coding: Frames are pre-highlighted in different colors, immediately drawing attention to critical packet types such as authentication and association requests.

2. Understand Your Setup

• The packet capture in the video features a lab environment with two access points (APs) and several client devices operating on Wi-Fi 6 and Wi-Fi 7 standards.
• By simulating real-world scenarios, such as client roaming between APs, the tutorial demonstrates how to identify connectivity issues.

3. Identify Key Metrics

The profile includes several essential columns:

• Channel Information: Tracks when a client changes channels, indicating potential roaming behavior.
• SSID Details: Displays the network name to which a client is attempting to connect.
• Data Rates: Monitors transmission speeds and identifies performance bottlenecks.
• Station Count: Reveals congestion levels by showing how many devices are connected to an AP/SSID.

4. Use Display Filters to Pinpoint Problems

Troubleshooting Wi-Fi often involves isolating specific frames. The video highlights key filters:

• Management Frames: Useful for analyzing client connectivity issues. For example, association and reassociation requests indicate whether a client is attempting to join a network or roam.
• Control Frames: These frames, such as acknowledgments, are often excluded from analysis but can provide insights in specific scenarios.
• Data Frames: Filters for retransmissions or dropped packets can reveal signal interference or network congestion.

Putting It Into Practice: Troubleshooting Scenarios

Scenario 1: Client Connectivity Issues

If a client cannot connect to a network:

1. Use the management frame filter to locate association requests.
2. Identify the client's MAC address (transmitter address) to trace their connection attempts.
3. Look for authentication failures or unknown certificate errors, which may indicate misconfigured security settings.

Scenario 2: Roaming Events

When clients move between APs:

• Monitor the channel column for changes. A switch in channel indicates a roaming event.
• Use reassociation frames to confirm whether the client successfully transitioned to the new AP.

Scenario 3: Congestion and Retransmissions

If connections are slow or unstable:

• Filter for retransmitted packets. A high retransmission rate (e.g., 20-30%) suggests a congested RF environment.
• Analyze data rates and station counts to identify potential bottlenecks.

Advanced Insights: New Wi-Fi Standards

The tutorial also includes insights into analyzing traffic for Wi-Fi 6, Wi-Fi 7, and WPA3 networks. For example:

• Wi-Fi 7 Features: Filters for multi-link frames and enhanced management capabilities.
• WPA3 Security: Decrypted views of the four-way handshake reveal the authentication process.
• Roaming Optimization: By leveraging PMK (Pairwise Master Key) caching, clients can bypass full authentication when reconnecting to previously visited APs.

These advanced features are particularly relevant for businesses adopting newer standards to improve performance in high-density environments.

Common Pitfalls and How to Avoid Them

• Incomplete Packet Captures: Ensure packets are captured at the AP level for a decrypted view of encrypted traffic.
• Overlooking Roaming Behavior: Clients often switch between bands (e.g., 2.4 GHz, 5 GHz, 6 GHz) or APs. Misinterpreting these behaviors can lead to incorrect diagnoses.
• Ignoring Timing Metrics: Delays in authentication or handshake processes can indicate misconfigurations or latency issues. Always reference timestamps to measure how long each stage takes.

Key Takeaways

• Tailored Wireshark Profiles Simplify Troubleshooting: Predefined filters, color schemes, and columns streamline the process of analyzing wireless packets.
• Focus on Key Metrics: Channels, data rates, and station counts provide crucial insights into network performance.
• Master the Basics of Packet Analysis:
  • Use management frame filters to troubleshoot connectivity.
  • Monitor channels to track roaming behavior.
  • Analyze retransmissions to identify congestion.
• Understand Advanced Wireless Protocols: Wi-Fi 6, Wi-Fi 7, and WPA3 require specific analysis techniques for effective troubleshooting.
• Capture at the Right Level: Packet captures from the AP (rather than over-the-air) provide a decrypted view of traffic, enabling more detailed analysis.

Conclusion

For small business owners in Wyoming’s rural areas, ensuring reliable Wi-Fi is essential for community connectivity and customer satisfaction. With tools like Wireshark and a well-designed profile, troubleshooting complex wireless issues becomes manageable - even for those without extensive IT experience. By applying the steps and insights covered in this guide, you can proactively address Wi-Fi challenges, optimize performance, and bridge the digital divide for your business and community.

Wireless technology is constantly advancing, but with the right tools and knowledge, you can stay ahead of the curve. Start exploring Wireshark today and empower yourself to take control of your network like never before.
